您现在位置是: 首页 >> 产品展示 >> AI盲区监测系统

产品名称：

产品型号：CL-S1018BSD-DVR

产品类别：AI盲区监测系统

产品简介：

* Built-in AI BSD function, support pedestrian and vehicle detection

* 4CH AHD 1080P camera Inputs with trigger wires

* Support AI detection area calibration setting, to customize your own AI solution

* Monitor and Camera IP69K waterproof rate, work well in harsh weather condition.

详细说明产品参数

Introduction:

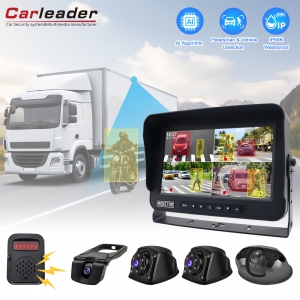

10.1 Inch Waterproof AI BSD Monitoring System Support DVR Recording, designed for trucks, buses, express cars, and special vehicles. Equipped with advanced AI image algorithms and a high-performance chip, this system intelligently detects pedestrians, cyclists, motorcycles, vans, and animals in blind spots, delivering timely alerts to prevent collisions.

Main Features:

Quad HD Monitoring: Four-way high-definition video recording (720P/1080P) with H.264 compression ensures crisp footage.

Smart Detection: Real-time warnings for objects entering blind zones, support AI function calibration, adjustable via trapezoidal calibration lines (green for warning areas, blue for vehicle-ground alignment).

Versatile Compatibility: 10.1 inch vehicle BSD blind spot detection monitoring system supports 7/9/10.1-inch screens, DC 12V-36V power input, and operates in extreme temperatures (-20°C to 70°C).

DVR Recording: Support Class 10 SD cards (16GB–128GB) for loop recording and Playback.

User-Friendly Interface: 10.1 inch vehicle BSD blind spot detection monitoring system supports multi-language , intuitive remote control, and easy menu navigation for settings like brightness, mirroring, and time/date.

Camera Customization: The BSD function is integrated in the Monitor, so the camera can use the regular AHD cameras for front view, side view (left & right), and rear view.

Specification:

ITEM	SPECIFICATION
Screen size	7/9/10.1 Inch AHD Quad Monitor (BSD)
Backlight brightness	LED, brightness: 500cd/m 2500:1
Screen resolution	1024RGB600
Language	English/Chinese/Japanese/Russian
System	PAL/NTSC
Power supply	DC 12V-36V (working voltage above 13V with camera) Output: 11.5V/3A
Operating temperature	-20℃~70℃
Storage temperature	-20℃~70℃
SD card slot	SD high-speed card for video storage, minimum 16GB, maximum 128GB, card speed not less than 10M/S
Support camera resolution	1280x720, 1920×1080
Video resolution	720P (HD 1280x720), 1080P (HD 1920×1080)
Photographic resolution	1280x720, 1920×1080
Storage compression mode	H.264
Video format	.ts
Picture format	.jpg
Connector	4-Pin Aviation Plug
Accessories	Power Cable, Remote Control, Bracket, User Manual
