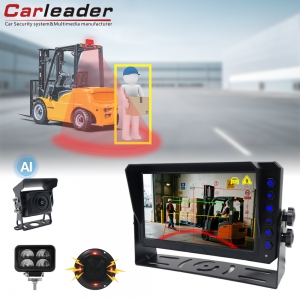

Name：AI Detection Monitoring System with U-Shape Warning Light For Forklift

Model：CL-S791AHD-AICAM-SL

Category：AI Blind Spot Detection System

Brief：

* Built-in AI chip, support pedestrian and vehicle detection

* Support AI detection area calibration setting, to customize your own AI solution

* Equipped with sound & light alarm for warning

* Collaborated with U-shape warning light, flashing when enter detection area

Description Parameters

Features:

1. Specially designed for 24V vehicles, wide voltage DC12-32V input.

2. Support pedestrian detection and warning function, can identify vehicles and pedestrians, etc., to carry out alarm identification frame identification and movement tracking.

3. AI intelligent algorithm. 3-color ladder (three-level) detection area, enter the corresponding AI blind spot area, the beep sound will getting more and more rapid, to guarantee a safer experience when operating the forklift .

4. Monitor support intelligently adjust all functions such as the AI BSD camera blind area scale warning area.

5. Monitor support setup of warning area size, positive image/mirror image, PAL/NTSC system function display.

6. The pedestrian/vehicle alarm can be set separately, and the alarm can be set at the same time or separately.

7. Support multiple choices of AI alarm sounds.

8. Support Maximum 2 channels inputs for AI blind spot detection function

9. Anti-power reverse connection design, TVS tube protection circuit prevents transient pulse damage.

10. Beside for AI camera, also support CVBS, AHD 720P/1080P signal camera input (Non-AI camera), PAL/NTSC auto switch

11. 7-inch AHD high-resolution blind spot area display, built-in DC 12~32V wide voltage.

12. Non-detachable Sunshade design, work better in strong light environment, U-shape bracket as default.

13. Adopt ergonomic laser engraved light-transmitting right side button for a better experience.

14. Monitor built-in menu for Brightness/contrast adjustment function.

15. 720P AI BSD camera, using AI intelligent starlight full-color chip, higher AI recognition rate, Lower false alarm possibility, no lagging and system crash, vivid colors and clear image quality, instant dynamic video response, no trailing or afterimage.

16. Double-layer PCB board, effectively improves seismic strength (6.8G).

17. The complete set only needs to be connected with one power supply, convenient and simple installation.

18. Metal housing sound and light alarm outside the car, warning when pedestrians and vehicles enter the blind spot range, to stay away (optional).

19. Arc U-shaped laser warning light. When normal, the red light always on. After trigger detection, red light start to flash to warn pedestrians and vehicles to stay away (optional).

Specification:

Monitor Specification
Model	CL-S791AHD-AICAM-SL
Panel	7 Inch TFT LCD
Brightness	600 cd/m2
TV System	PAL/NTSC auto swtich
Resolution	1024(H) 600(V)
View Angle	U:85 / D:85, R/L:85
Contrast	500:1
Image Mode	16:9
Function	Parking guide/Parking delay/Mirror
Video Input	CVBS/720P/1080P signal input
Smart Control	Monitor support AI setting
Power Protection	Anti-power reverse connection design, TVS tube protect circuit
Anti-interference Design	Optional
Power Consumption	When 12V, ≤10W (including camera)
Installation Way	U-shaped bracket and hanging bracket dual-purpose design
Power Input	DC 12-32V
Net Weight	About 400g
Size	193mm112mm25mm
Operating Temp	-20~70 ℃
Camera Specification
Camera Image Sensor	Color AHD
TV System	PAL/NTSC
Resolution	1280*720 (1 million)
AI Algorithm	Support pedestrian & vehicle detection alarm
AI Alarm	Three colors (Green, Yellow, Red) detection area
Detection Area	Support detection area calibration setup
Backlight Compensation	Auto
White Balance	Auto
SNR	≤48dB (AGC on)
GAMMA Parameter	0.45
Video Input	1.0Vp-p75ohm-AHD
Viewing Angle	120° (150 °optional)
Waterproof Level	IP68
Power Supply	DC12V (24V optional)
Power Consumption	2W
Operating Temp	-20 ~ 70℃ (RH93% Max.)
