Features:
* 5.6" digital panel with 4 : 3 image ratio, 640 x 480 (RGB) resolution.
* 2CH AHD camera inputs, 3CH input also available.
* Video format available for AHD 720P/1080P, compatible for CVBS camera.
* 1CH Trigger wire for AHD2 on reversing
* Built-in High quality audio speaker optional, without speaker as default.
* Full function remote control (Pack with 1x remote in the box)
* Auto Dimming function optional (Without auto dimming as default), support to adjust the screen brightness automatically base on the surrounding light intensity.
* Multiple language menu setting for option.
* Wide working voltage: 9~32V
Parameter:

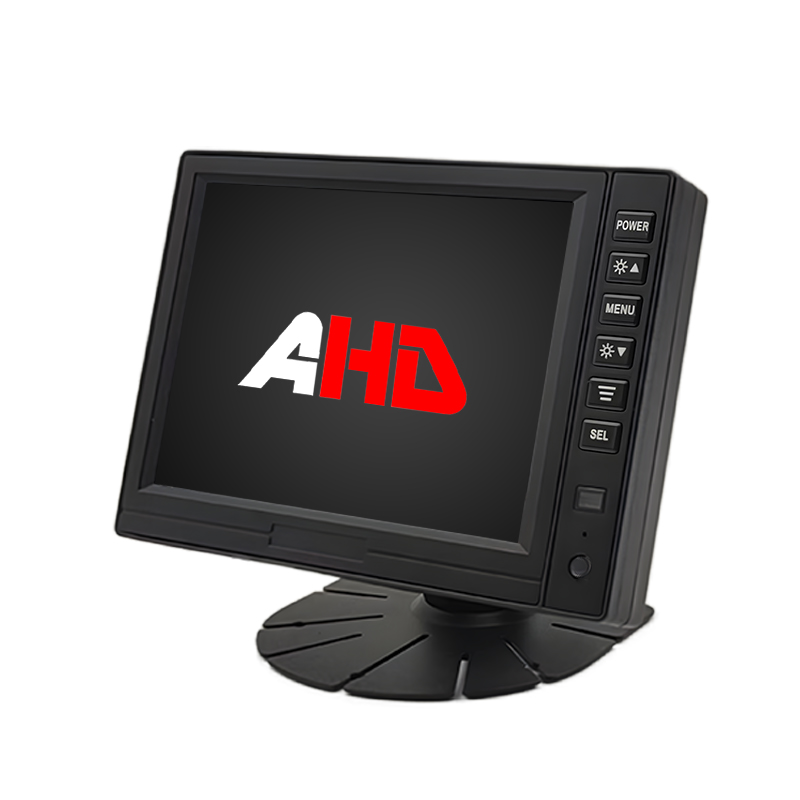

| 5.6 Inch 2AV Inputs AHD Vehicle Monitor | |
| Model | CL-S562AHD |
| Screen Type | 5.6 inch TFT LCD panel |
| Aspect Ratio | 4 : 3 |
| Resolution | 640 x 480 (RGB) |
| Brightness | 350 cd/m2 |
| Contrast | 400 : 1 |
| Video Input |
Support 2CH / 3CH AHD 1080P/720P/CVBS Mixed Video Signal Input available With 1CH Trigger wire for AHD2 on reversing |
| Speaker | Optional (Without as default) |
| Audio Mode | CH1 with audio function |
| Auto Dimming | Optional (Without as default) |
| Remote Control | Yes, Package include 1x remote |
| OSD Menu |
Brightness, Contrast, Color, Display Aspect Ratio, Language Select, Trigger Delay, Parking Guide Line On/Off, Reset |
| Parking Guide Line |
Only for AHD2, activated when trigger the trigger wire (Off as default) |
| Button Type | Click buttons |
| Power Supply | DC 9~32V |
| Connection Plug (Connector) | 4PIN aviation connector as default, customized to RCA connector available |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Dimension |
15.5 x 11.5 x 2.5 cm (without shade) |
