Name：Windshield Mount WDR Starlight AHD Front View Camera

Model：CL-D3093

Brief：

* Resolution: AHD 1080P. Lens with digital WDR function.

* With 3M adhesive pad, can apply on the front windshield for front view camera
* Wide Viewing Angle: 120°, vertical angle adjustable

* IP69K Waterproof Level, suitable for rainy and sea working enviornment

Description Parameters

Windshield Front View Camera

Product Parameter:

Images Sensor: 1/2.8" Sony 307(1080P).1/3" APTINA CVBS(CVBS)

Effective Pixels:2.000.000pixels(1080P). 1.000.000pixels(CVBS)

Lens:2.9mm

Video Input: CVBS/AHD720P/AHD1080P optional

View Angle: 120°

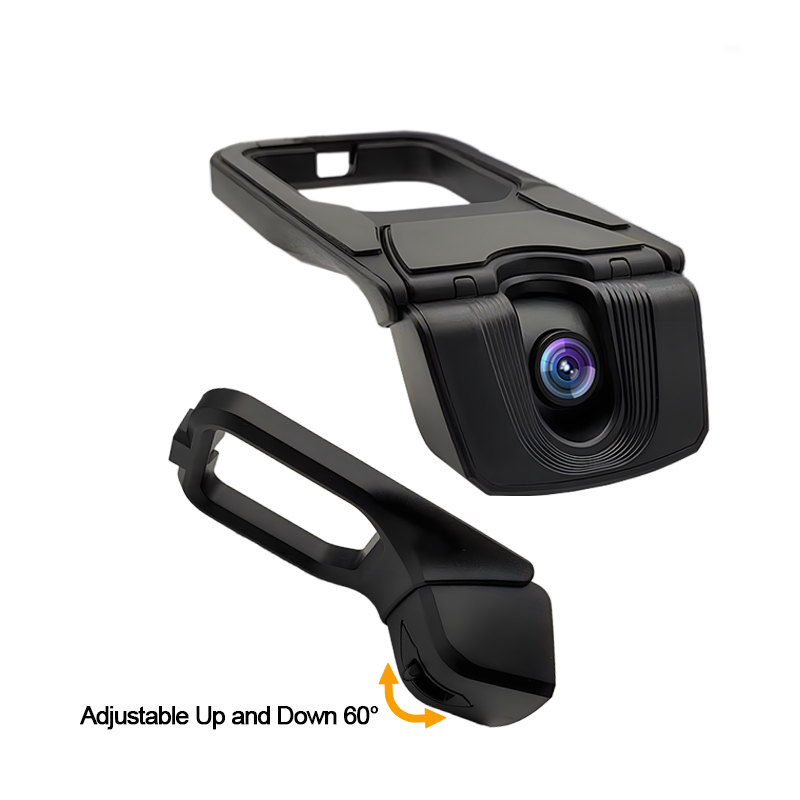

Adjustable Lens Angle 60°

With mini 4pin cable and 3M 4pin aviation cable

Power supply:DC12V(standard). 24V (optional)

Starlight Night Vision (Color image)

With Digital WDR Function

Concealable wiring installation

System: PAL/NTSC optional

Build-in Mic: No

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)

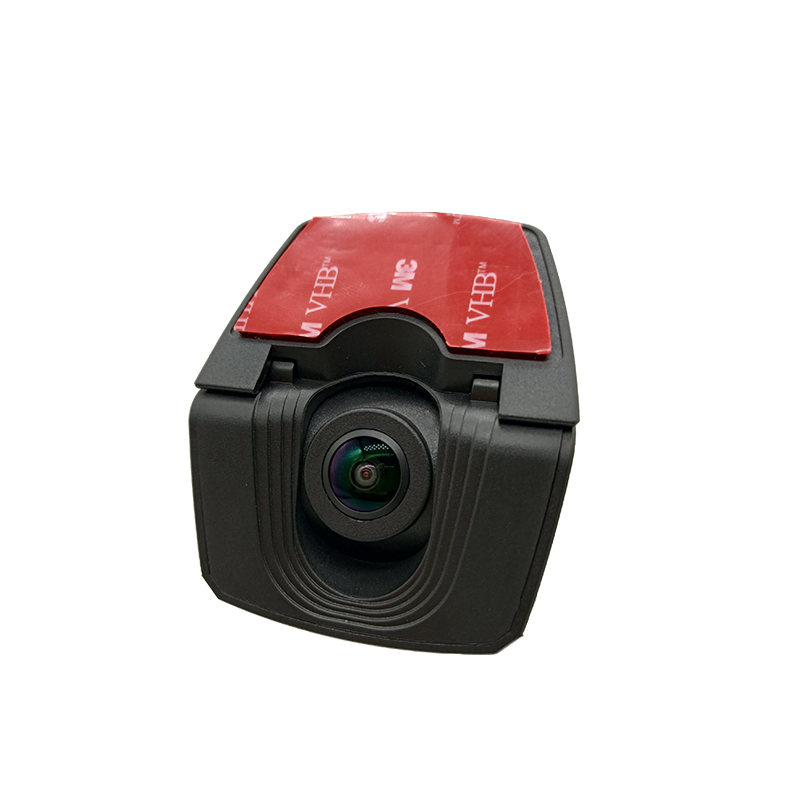

Product Image:
