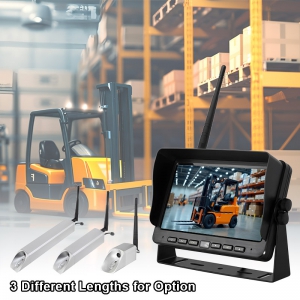

Carleader 7 Inch Wireless Magnetic Camera System for Forklift, a cutting-edge forklife camera solution specifically designed for forklift system. camera with 3 different lengths for option. Equipped with positioning laser light, help forklift to get the goods with no extra effort.

Parameter:

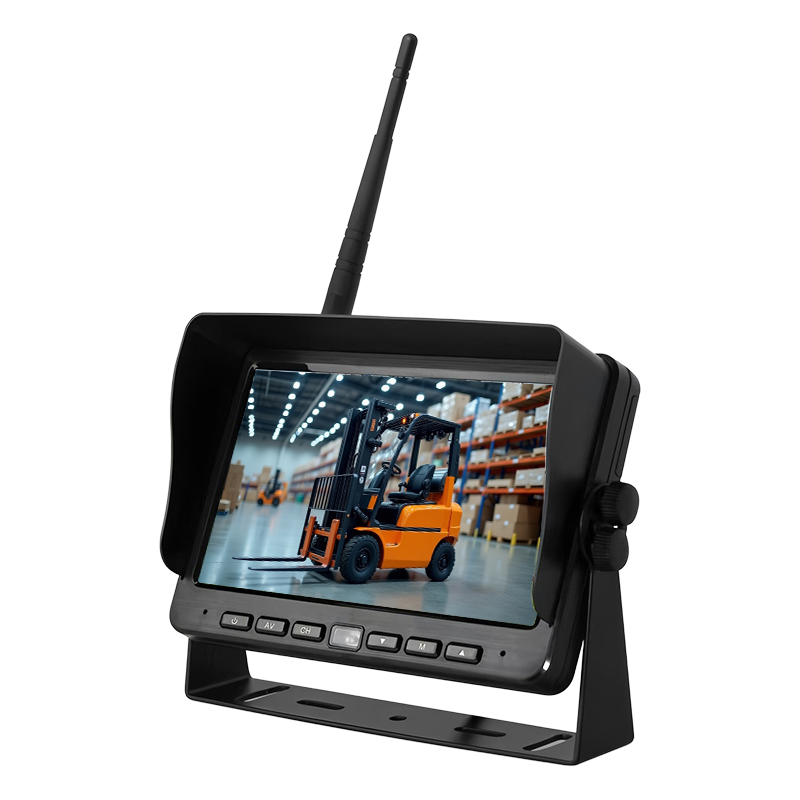

Monitor:

7’’ Digital new panel, 16:9 Image

Resolution: 1024 x 600 (RGB)

Brightness: 450 cd/m2

Working Frequency: 2412~2484 MHz

Antenna input impedance: 50Ω

Wireless Distance about: 150M in open area

Support Recording Function, SD Card Storage up to 256GB

Menu support multiple languages switch

Support AI function and Calibration, on / off available

Operating Temperature: -20℃ ~ 70℃ 85%RH

Storage Temperature: -30℃ ~ 85℃ 85%RH

Camera:

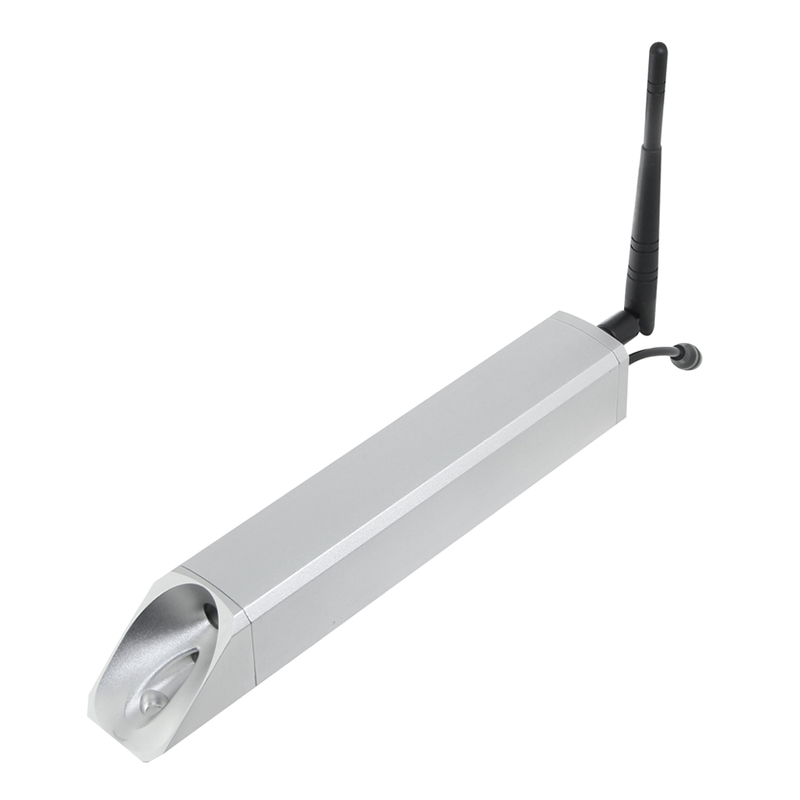

CL-FCAM01A (Long):

2.4G wireless forklift camera with laser

Working Voltage: DC 10V~45V (Built-in Rechargeable Battery: 5000mAh)

Charging Voltage: 12V

Image Sensor: 1/2.8 CMOS

Resolution: 1080P (1920 x 1080)

Housing Material: Aluminum Alloy

View Angle: 45°

Transmission power: 20dBm

Wireless Distance about: 150M in open area

With LED light

Waterproof: IP69

Magnetic Base include 9 powerful magnet, easy to install

Operating Temperature: -20℃ ~ 70℃ 95%RH

Storage Temperature: -30℃ ~ 80℃ 95%RH

Camera Length: 258.33mm (Length For only Camera, no include antenna)

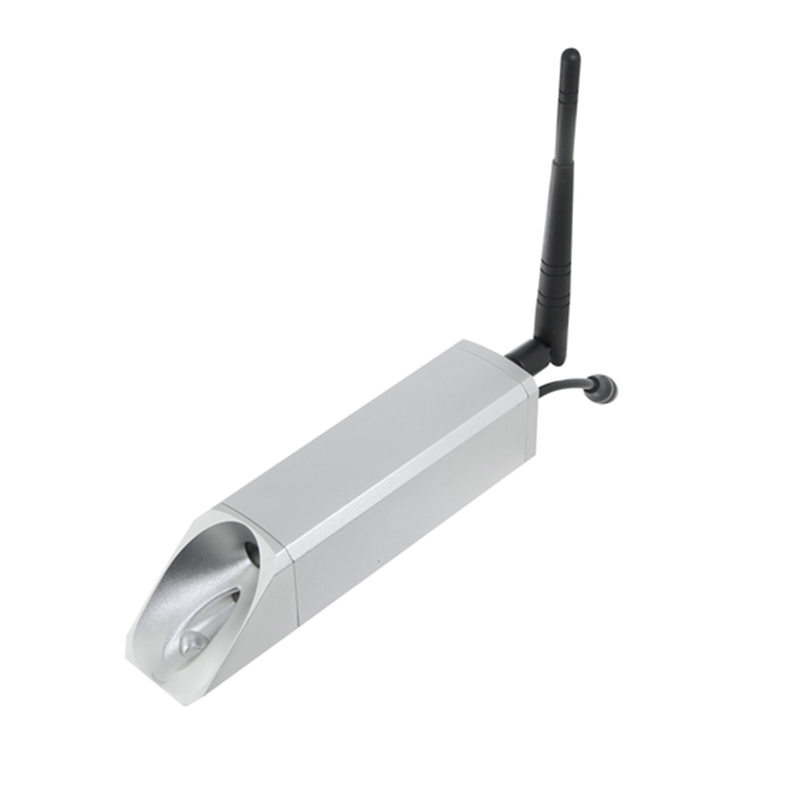

CL-FCAM01B (Short):

2.4G wireless forklift camera with laser

Working Voltage: DC 10V~45V (Require External Power Supply)

Charging Voltage: 12V

Image Sensor: 1/2.8 CMOS

Resolution: 1080P (1920 x 1080)

Housing Material: Aluminum Alloy

View Angle: 45°

Transmission power: 20dBm

Wireless Distance about: 150M in open area

With LED light

Waterproof: IP69

Magnetic Base include 6 powerful magnet, easy to install

Operating Temperature: -20℃ ~ 70℃ 95%RH

Storage Temperature: -30℃ ~ 80℃ 95%RH

Camera Length: 182.33mm (Length For only Camera, no include antenna)

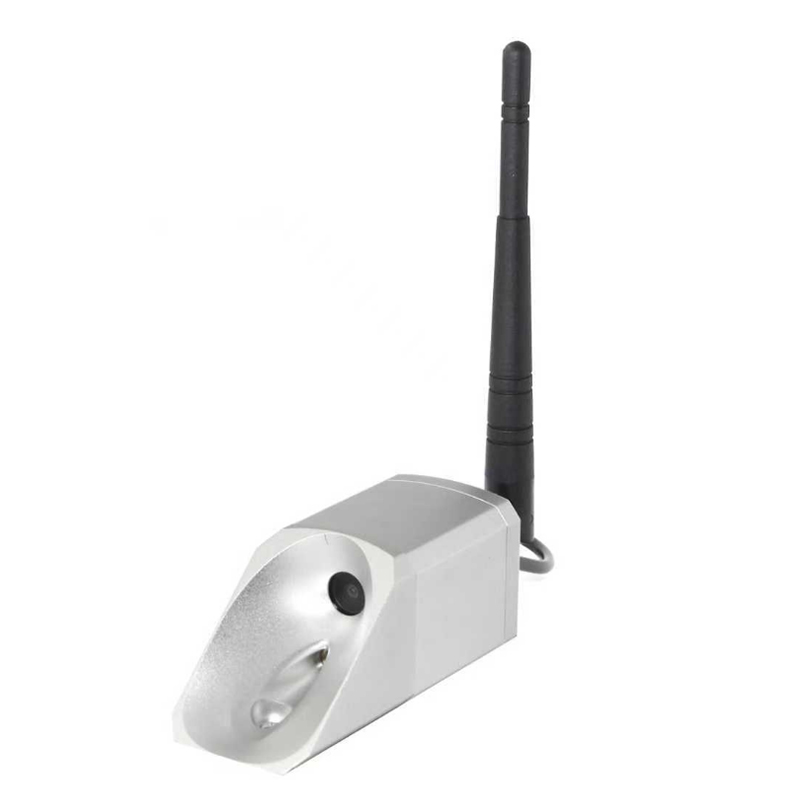

CL-FCAM01C (Extra Short):

2.4G wireless forklift camera with laser

Working Voltage: DC 10V~45V (Require External Power Supply)

Charging Voltage: 12V

Image Sensor: 1/2.8 CMOS

Resolution: 1080P (1920 x 1080)

Housing Material: Aluminum Alloy

View Angle: 45°

Transmission power: 20dBm

Wireless Distance about: 150M in open area

With LED light

Waterproof: IP69

Magnetic Base include 6 powerful magnet, easy to install

Operating Temperature: -20℃ ~ 70℃ 95%RH

Storage Temperature: -30℃ ~ 80℃ 95%RH

Camera Length: 105.83mm (Length For only Camera, no include antenna)
